Description

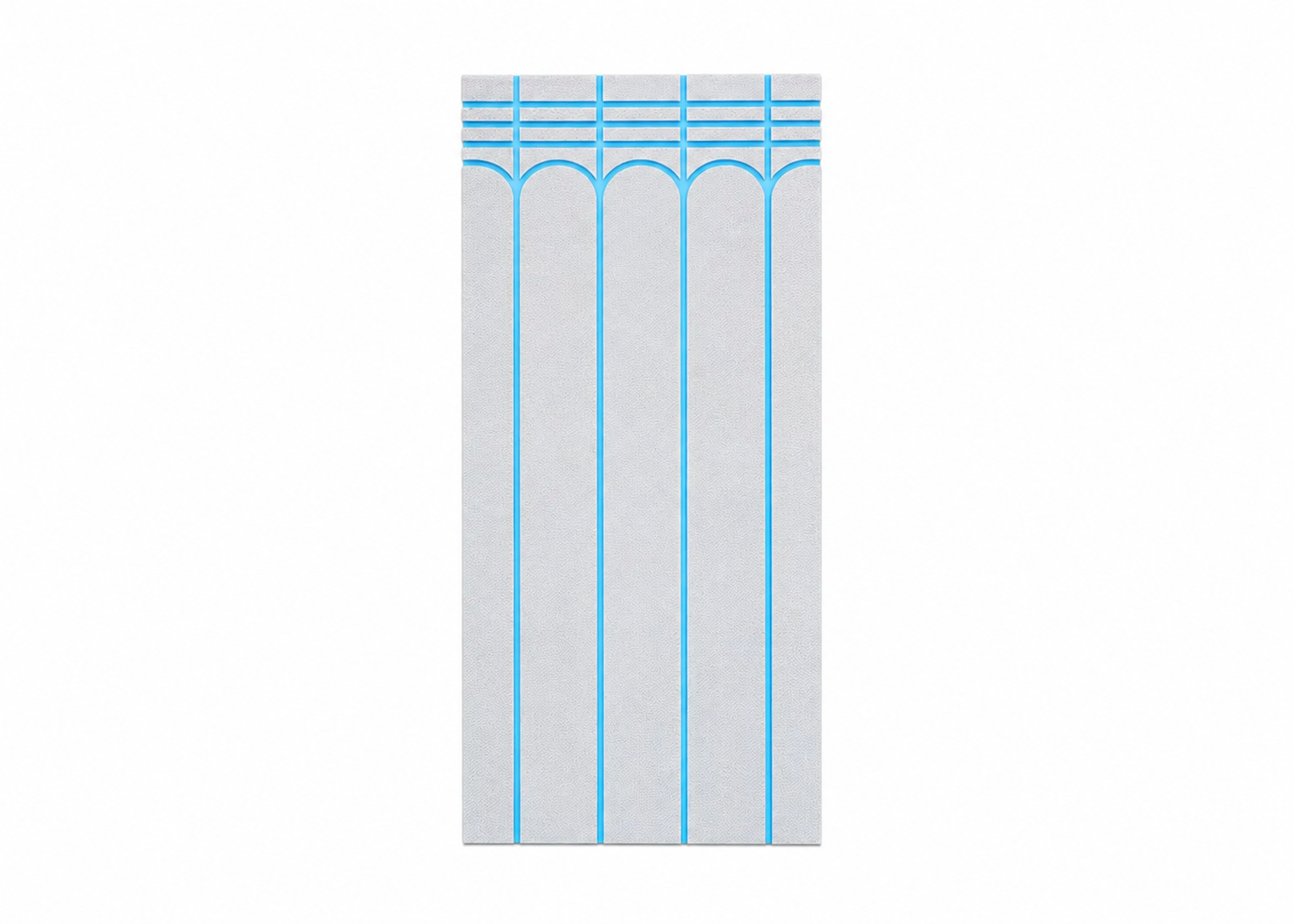

The Simply Tile Backer Board is an underfloor heating solution designed for renovation projects where screeding is not an option and floor height is restricted. Manufactured from extruded polystyrene with a cementitious surface, it allows tiles to be installed directly on top while providing excellent insulation and heat distribution.

The boards are pre-grooved for 16mm underfloor heating pipe at 150mm or 200mm centres, making them suitable for a range of heat sources. Engineered wood and laminate flooring can also be installed directly over the system, while carpet installations require a 6mm separation layer.

Key Features
  • Direct tile installation with no screed required
  • Suitable for laminate, engineered wood and tiled floors
  • Pre-grooved for 16mm UFH pipe
  • Available in 150mm or 200mm pipe centres
  • High compressive strength of 400 kPa
  • Ideal for renovation and retrofit projects
  • Quick and easy installation
Technical Specification
  • Dimensions: 1200mm x 600mm x 20mm
  • Construction: Extruded Polystyrene with Cementitious Finish
  • Pipe Size: 16mm PERT-AL-PERT or EVOH Pipe
  • Expected Heat Output: 65–75 W/m²
  • Compressive Strength: 400 kPa
  • R Value: 0.60
  • U Value: 1.6 W/m²K
