Description

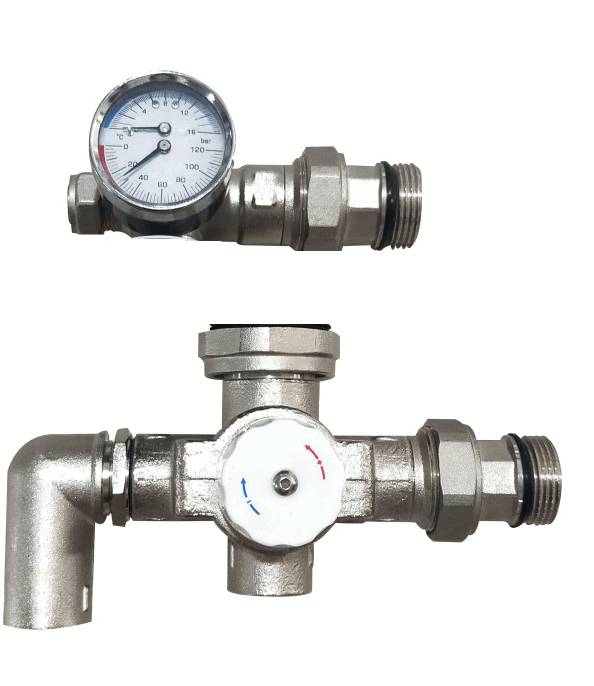

The Simply UFH Blend Valve is designed to work alongside underfloor heating manifolds and Wilo circulation pumps, providing accurate water temperature control for underfloor heating systems. By blending hot water from the heat source with cooler return water, it delivers a safe and consistent flow temperature to the floor circuits, helping to maximise comfort, efficiency, and system performance.

Factory preset to 45°C, the blend valve features an adjustable temperature range of 35°C to 60°C, allowing installers to fine-tune system temperatures to suit individual project requirements. Built-in pressure and temperature gauges, together with a calibration point, make commissioning and ongoing system adjustments simple and effective.

Suitable for domestic and commercial underfloor heating installations, the Simply UFH Blend Valve supports heat outputs up to 14kW and is designed for reliable long-term operation.

Product Features & Benefits
  • Designed for use with underfloor heating manifolds and Wilo pumps
  • Accurate mixing of flow and return water temperatures
  • Factory preset to 45°C
  • Adjustable temperature range from 35°C to 60°C
  • Built-in pressure and temperature gauges
  • Calibration point for easy system adjustment
  • Suitable for systems up to 14kW heat output
  • Compact design for easy installation
  • Ideal for boiler-fed underfloor heating systems
Technical Specification
  • Maximum Heat Output: 14kW
  • Maximum Temperature: 85°C
  • Adjustable Temperature Range: 35°C – 60°C
  • Factory Preset Temperature: 45°C
  • Maximum Static Pressure: 10 Bar
  • Heating Flow Connection: 1″ Male
  • Heating Return Connection: 1″ Male
  • Boiler Flow Connection: ¾” BSP
  • Boiler Return Connection: ¾” BSP
  • Installed Dimensions: 140mm (W) x 350mm (H)
Warranty
  • 1 Year Manufacturer’s Warranty
